SIGHTMARK WRAITH MINI 2-16X35 THERMAL RIFLE SCOPE 384X288
The Sightmark Wraith Mini 2–16×35 is a compact and versatile thermal riflescope featuring a 384×288 VOx sensor (17 µm) paired with a 35 mm lens and 2× optical magnification plus 1–8× digital zoom, offering a zoom range of approximately 2–16×. The image is displayed on a vibrant 1024×768 OLED panel and can be viewed in five thermal palettes (White Hot, Black Hot, Green Hot, Rainbow, Magenta), alongside ten reticle patterns in nine colors, adjustable for different shooting profiles.
Built for adaptability in the field, it provides up to five weapon profiles, onboard video and audio recording, and supports microSD cards up to 256 GB for secure capture of recordings. With a detection range of around 1,400 yards (≈1,280 m) and a lightweight aluminum housing rated IP55 for resistance to water and dust, it combines durability with portability (~19 oz / 548 g).

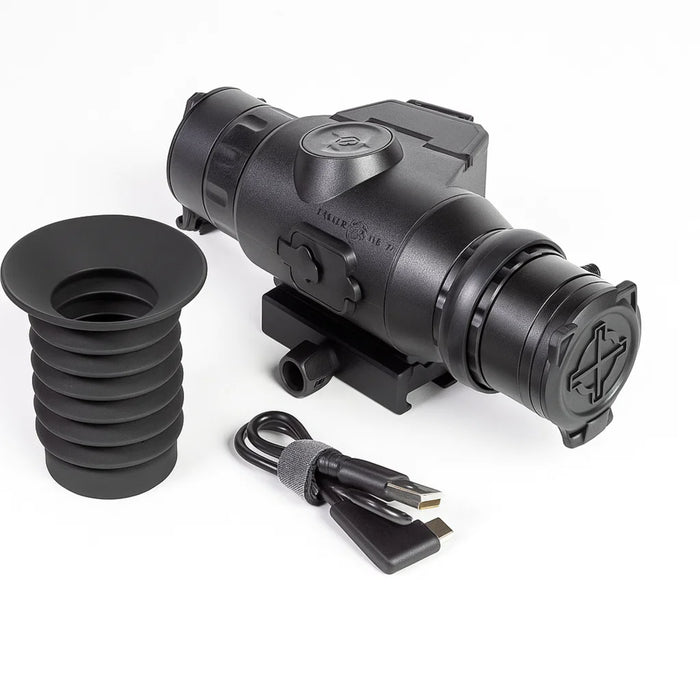

Power is supplied by two CR123A batteries, providing approximately 3.5 hours of runtime in video mode and about 4.4 hours in preview mode, plus external USB power capability. Included accessories are flip-up lens covers, rubber eyecup, throw-lever, USB cable, and batteries. With its feature-rich package and approachable price point, the Wraith Mini is ideal for hunters, tactical operators, and outdoor users needing a compact yet capable thermal optic.
FEATURES:
384x288 Thermal Resolution
Lightweight and Compact
OLED Display
5 Color Palettes
9 Reticle Colors
10 Reticles
5 Weapon Profiles
Built-in Recording w/ Sound
WARNING:
This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Additional Features:
Specification | Detail |
---|---|
OTHER FEATURES | USB CABLE, FLIP UP LENS CAPS, THROW LEVER, QUICK START GUIDE, RUBBER EYE CAP |
AUTO BRIGHTNESS | N |
BATTERY LIFE (HOURS) | 3.6000 |
BRIGHT LIGHT CUT-OFF | N |
CONTROLS | DIGITAL |
PACKAGING DIMENSIONS | 4.10 X 5.75 X 13.70 |
DIOPTER ADJUSTMENT | -6 TO +3 |
ENVIRONMENTAL RATING | IP55 WATER RESISTANT |
EXIT PUPIL | 0.0000 |
EXPORT | N |
EYE RELIEF | 0.0000 |
FIELD OF VIEW | 51.0000 |
FIGURE OF MERIT | N/A |
GENERATION | SMART HD |
INFRARED ILLUMINATOR | YES |
IR INDICATOR | N |
LOW BATTERY INDICATOR | N |
MAGNIFICATION | 2-16 |
MTTF - TIME BEFORE FAILURE (HRS) | 0.0000 |
OPERATING TEMPERATURE | N/A |
PHOTOCATHODE TYPE | CMOS SENSOR |
POWER SUPPLY | 2 CR123A |
RANGE OF FOCUS | 80MM |
STORAGE TEMPERATURE | N/A |
SIGNAL TO NOISE RATIO | N/A |
HEIGHT | 4.1000 |
WIDTH | 5.7500 |
LENGTH | 13.7000 |
RESOLUTION IP/MM | 384X288 |
