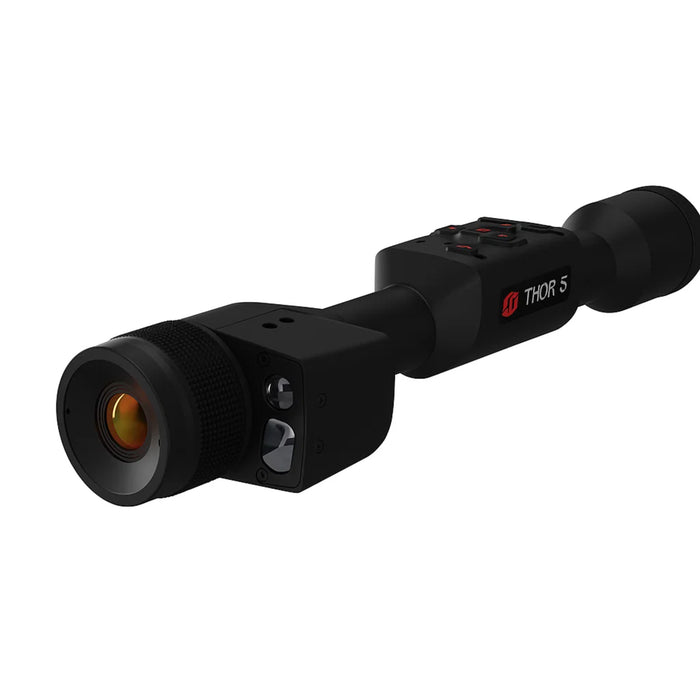

ATN THOR 5 LRF 3-12X THRML RFL SCP W/GEN 5 SENSOR 320X240
The ATN ThOR 5 LRF 3–12× is a flagship grade thermal riflescope featuring a high-sensitivity 320×240 VOx sensor (12 µm, 60 Hz) powered by ATN’s Gen 5 Quad-Core processor, and outputs crisp imagery on a 1024×768 OLED display with Smooth Zoom optics and 3–12× magnification. Equipped with an integrated laser rangefinder (up to ~1,000 yd), onboard ballistic calculator, and Recoil‑Activated Video (RAV), it records Full HD video (1280×960 @ 60 fps) while streaming live via Wi‑Fi/Bluetooth to ATN’s mobile app. Advanced features include 3D accelerometer/gyroscope stabilization, electronic compass, customizable reticles with Reticle Editor, and profile manager for up to 5 custom shooting presets.
Built for rugged use with a 30 mm main tube, ~90 mm eye relief, and IP weather resistance, this unit weighs around 1.9 lb (0.97 kg), delivers roughly 10 hours of runtime on its internal Li‑Ion battery, and supports microSD storage up to 64 GB. With a human detection range of ~750 m (~820 yd) and an ID range near 205 m (~225 yd), it’s ideal for tactical, hunting, and long-range precision applications.
FEATURES:
Ultra Sensitive Next Gen Sensor
Ballistic Calculator
Video Record
Dual Stream Video
Recoil Activated Video
Comfortable Eyerelief 90mm
Extended Battery Life
Classic Ergonomics
Reticle Editor
Smart MIL Dot Reticle
WARNING:
This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Additional Features:
Specification | Detail |
---|---|
OTHER FEATURES | 320X240M 12 MICRON, SMART HD THERMAL RIFLE SCOPE WITH GEN 5 SENSOR, VIDEO RECORDING, BALLISTIC CALCULATOR, RAV |
PACKAGING DIMENSIONS | 5.45 X 7.90 X 16.25 |
FINISH | BLACK MATTE |
POWER | 3-12 |
WEIGHT IN OUNCES | 0.0000 |
HEIGHT | 5.4500 |
WIDTH | 7.9000 |
LENGTH | 16.2500 |
TYPE OF SCOPE | THERMAL |
TUBE DIAMETER | 30mm |
FIELD OF VIEW AT 100 YARDS | 24-19 |
LENGTH IN INCHES | 0.0000 |
FRONT LENS IN MM | 0.0000 |
ADJ PARALLAX | Y |
TARGET TURRETS | N |
LENS CAPS INCLUDED | N |
TYPE OF RETICLE | MULTIPLE PATTERNS & COLORS |
SIDE PARALLAX ADJ | N |
LOCKING TURRETS | N |
INCLUDES RINGS | N |
