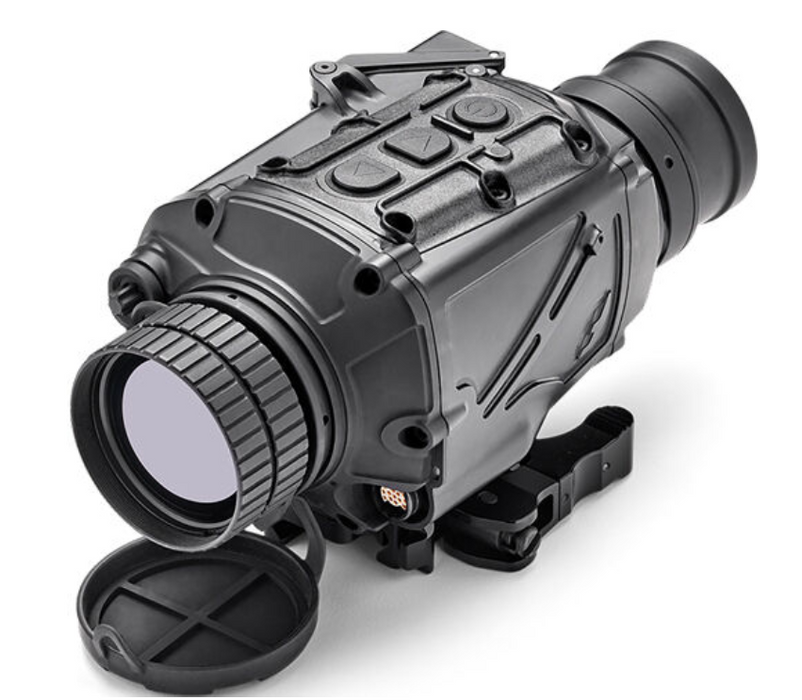

EOTECH INFRARED THERMAL MK2 CLIP-ON IR MED RANGE

The EOTECH® ClipIR uncooled thermal clip-on device features state-of-the-art image enhancement algorithms developed to provide users with an unrivaled day/night vision advantage in detecting, observing and engaging targets. EOTECH thermal products incorporate the latest in IR sensors, electronics, and optical technologies to deliver world leading reliability, superior imagery and range performance. Simply mount the ClipIR in front of a low magnification range (1-8X) day scope to provide thermal detection, observation, and engagement while maintaining the day optic’s ballistic zero. Features an intuitive user interface and attaches quickly and easily to Picatinny (1913) rails.

Specifications

L x W x H

6.8" × 3.2" × 4.7" (172 × 82 × 118mm)

Weight

35.2 oz / 2.2 lbs (998g)

Power Source

3 AA batteries — Supports lithium, alkaline or rechargeable

Battery Life

Lithium: >8 hours

Field-of-View

11.6°

Magnification

1X (2X and 4X digital zoom)

System Focus Distance

10m to infinity

Water Resistant

2m

Pixels

1280 x 1024

Pixel Pitch

12 μm

Micro Display Color

Black/White/Color

Included in the box:

  • EOTECH ClipIR
  • Quick Start Guide
  • Technical Manual
  • Neoprene Hood
  • Lens Cleaning Kit
  • Protective Case
