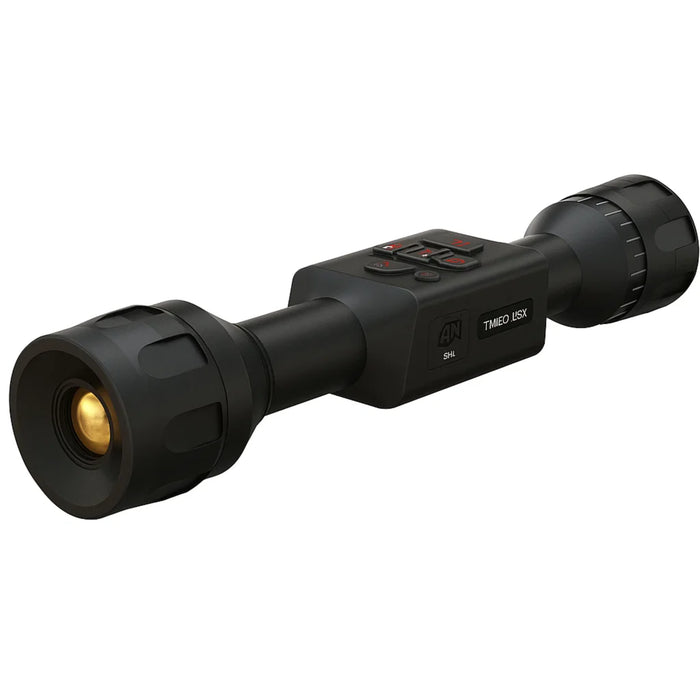

ATN THOR LTV 3-9X THERMAL RFL SCOPE 256X192 12 MICRON
The ATN ThOR LTV 3–9× is a lightweight and easy-to-use thermal rifle scope built around a 256×192 VOx thermal sensor with 12 µm pixel pitch, operating at 60 Hz refresh rate for smooth, accurate imaging. It offers 3–9× zoom through a 25 mm objective lens, with a 7.1° × 5.4° field of view and 90 mm eye relief, displayed on a 1280×720 HD OLED screen. The unit features video recording, One Shot Zero functionality for easy sighting, a variety of reticles & thermal modes (including White Hot, Black Hot, and Color), and a robust 30 mm main tube chassis. It runs over 9 hours on a rechargeable Li‑ion battery, is compatible with standard rings, weighs approximately 1.4 lb (650 g), and the lightweight design makes it ideal for mounting across rifles, airguns, and crossbows. Detection range can reach up to 1,300 yards for a human-sized target under optimal conditions
FEATURES:
Magnification | 3-9x |
Color | Black |
Reticle | Multi |
Material | Aluminum |
Firearm Type | Air Rifle / Crossbow / Centerfire & Rimfire Rifle |
Mount Type | Standard 30mm Rings |
Wireless Capable | Yes |
Field of View | 7.1 x 5.40 Degrees |
Resolution | 256x192, 12 Microns, 50 Hz |
Objective | 25mm |
Rechargeable | Yes |
Eye Relief | 90mm |
Battery Size | Li-ion |
Length | 11.50" |
Proofs | Weather Resistant |
Modes | Black, White Hot / Color |
Power Source | USB-C |
Detection Range | 1035 yds |
Battery Life | 9+ hrs |
Includes | Eyecup / Scope Cover / USB-C Cable / Lens Tissue |
Weight | 1.40 lbs |
Display | 1280x720 HD |
Memory | Up to 64GB / SD Card |
Picture or Video | Video Recording |
WARNING:
This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Additional Features:
Specification | Detail |
---|---|
OTHER FEATURES | 256X192 12 MICRON WITH VIDEO RECORDING |
PACKAGING DIMENSIONS | 4.15 X 6.70 X 13.95 |
FINISH | BLACK MATTE |
POWER | 3-9 |
WEIGHT IN OUNCES | 0.0000 |
HEIGHT | 4.1500 |
WIDTH | 6.7000 |
LENGTH | 13.9500 |
TYPE OF SCOPE | THERMAL |
TUBE DIAMETER | N/A |
FIELD OF VIEW AT 100 YARDS | N/A |
LENGTH IN INCHES | 0.0000 |
FRONT LENS IN MM | 0.0000 |
ADJ PARALLAX | N |
TARGET TURRETS | N |
LENS CAPS INCLUDED | N |
