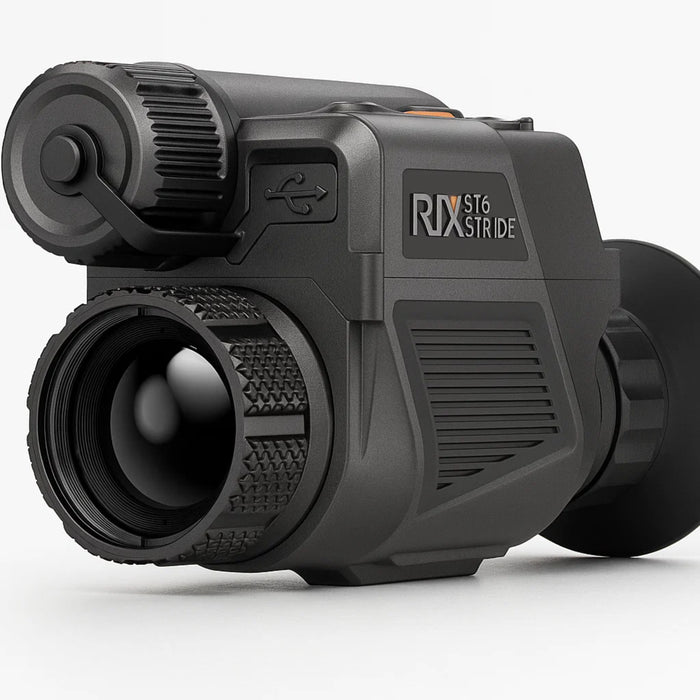

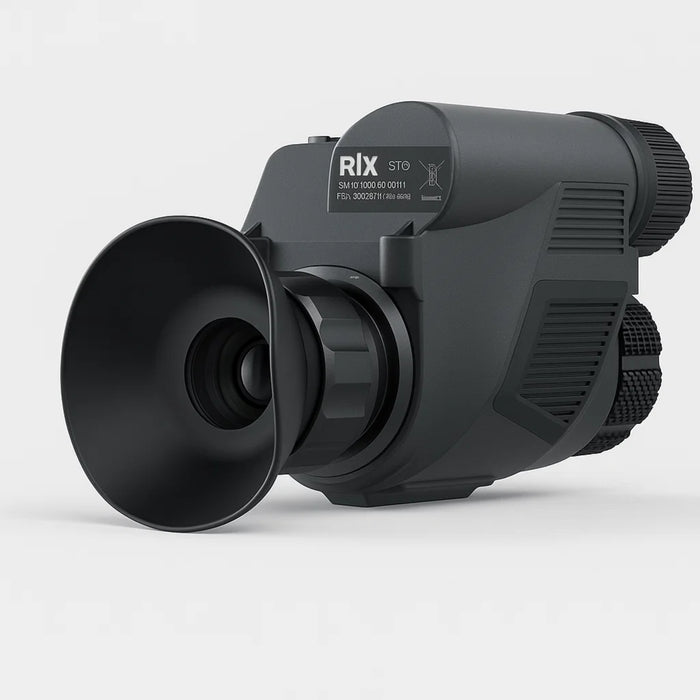

RIX STRIDE ST6 THERMAL HELMET MOUNTABLE MONOCULAR 640 25MM

The RIX Stride ST6 is an ultra‑compact, dual-purpose thermal monocular designed for helmet-mounted or handheld use. It features a high-sensitivity 640×512 VOx sensor (12 µm pixel pitch, NETD <25 mK) with a 50 Hz refresh rate, delivering fluid and detailed imaging. The unit displays thermal views via a rich 1024×768 full-color OLED screen and achieves detection ranges up to approximately 1,969 yards. Equipped with six distinct image modes—including White Hot, Black Hot, Red Hot, Iron, Edge, and Green Hot—it also supports up to 6× digital zoom and includes built-in photo/video capture with 64 GB storage and Wi‑Fi connectivity. Its 18650 battery provides up to 10 hours runtime, and USB‑C external power extends operational time. This lightweight (~0.6 lb) and helmet-mountable system offers IP67 water ingress protection, integrated lens cover, and app compatibility with iOS/Android devices. Backed by a five-year transferable warranty, the ST6 combines high-end performance with field-ready versatility.

FEATURES:

High-Performance Sensor

Six Image Modes & 1x Optical Magnification

10H Operation Time

1024*768 Full Color OLED

1969YDS Detection Distance

Recording and Wi-Fi

Incredibly Lightweight & Compact Design

WARNING:

This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Additional Features:

Specification Detail
NEWITEM YES
OTHER FEATURES 1×, 2×, 4×, 6× digital zoom; 10-hour operation time; six image modes; 1024×768 full-color OLED; 1969 m detection distance; recording & Wi‑Fi
OTHER FEATURES2 Helmet mountable
PACKAGING DIMENSIONS 5.95 X 5.70 X 9.80
DIMENSIONS 4.5 x 2.8 x 1.9 inches
DIOPTER ADJUSTMENT –5 / +2
EXIT PUPIL 0.0000
EYE RELIEF 20.0000
FIELD OF VIEW 31.5000
IR INDICATOR N
LOW BATTERY INDICATOR N
POWER SUPPLY 18650 battery
RANGE OF FOCUS 1900 (likely meters)
HEIGHT 5.9500
WIDTH 5.7000
LENGTH 9.8000
RESOLUTION IP/MM 640×512
