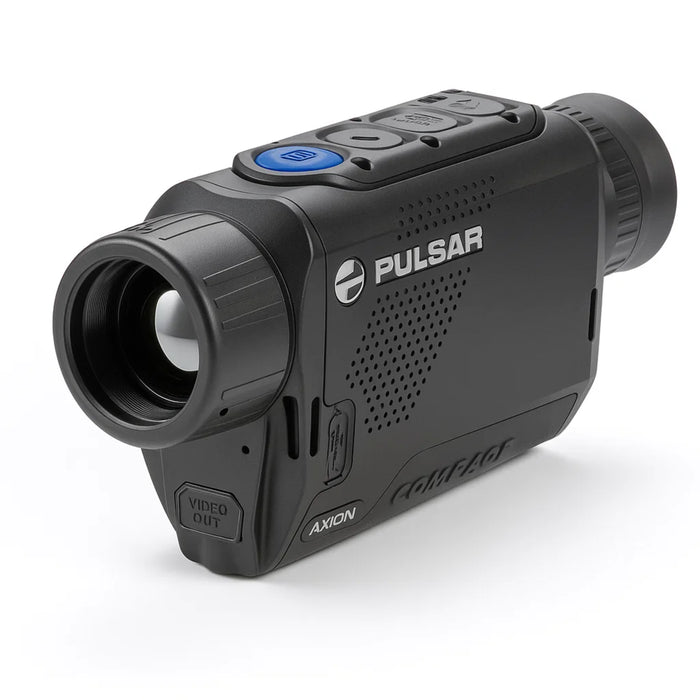

PULSAR AXION XG30 COMPACT THERMAL MONOCULAR 640X480

The Pulsar Axion XG30 Compact is a rugged, pocket-sized thermal monocular that features a high-resolution 640×480 @ 12 µm Lynred sensor (NETD < 40 mK), offering crisp thermal imaging and a detection range of up to approximately 1,300 meters (~1,420 yards). Its 30 mm F/1.2 germanium lens delivers a wide 14.6° field of view, ideal for fast area scans, and supports 2× base magnification with up to 8× digital zoom (totaling 2–16×) for detailed inspection. The monocular projects visuals onto a crisp AMOLED display (640×400 resolution) and includes photo/video recording with audio, Wi‑Fi (2.4/5 GHz) connectivity, and compatibility with Pulsar’s Stream Vision 2 app for streaming, remote control, and firmware updates.

Built with a robust magnesium alloy housing, the device is IPX7-rated waterproof and weighs just under 11 oz (≈ 0.5 lb / 316 g). It runs up to 7 hours on a single APS 3 rechargeable lithium‑ion battery and includes external USB‑C charging support for added convenience. Ergonomic and intuitive, it includes top-mounted controls and even a magnetic wand for stowing the hand strap, making it ideal for hunters, law enforcement, and outdoor enthusiasts in rugged environments

FEATURES:

Compact pocket-sized design

640x480/12μm European thermal imaging sensor

Wide field of view for easy scanning

Rugged magnesium alloy housing

Photo and video recording

A selection of 8 color palettes

High contrast AMOLED display

Lossless pixel to pixel image transfer

Digital zooming for enhanced identification

Quick-change long-life battery

IPX7 fully waterproof

WARNING:

This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Additional Features:

Specification Detail
AUTO BRIGHTNESS N
BATTERY LIFE (HOURS) 11.0000
BRIGHT LIGHT CUT-OFF N
PACKAGING DIMENSIONS 4.50 X 4.65 X 11.40
DIOPTER ADJUSTMENT +4/-5
EXIT PUPIL 0.0000
EXPORT N
EYE RELIEF 14.0000
FIELD OF VIEW 10.7000
IR INDICATOR N
LOW BATTERY INDICATOR N
MAGNIFICATION 2-8
MTTF - TIME BEFORE FAILURE (HRS) 0.0000
OPERATING TEMPERATURE -25/40
POWER SUPPLY PULSAR APS5 LI-ION
RANGE OF FOCUS 1300
HEIGHT 4.5000
WIDTH 4.6500
LENGTH 11.4000
RESOLUTION IP/MM 640X400
