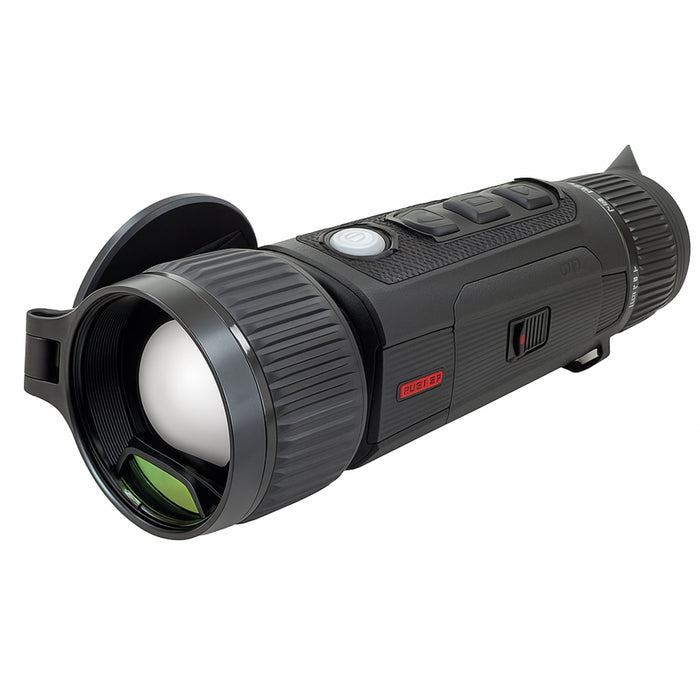

NOCPIX VISTA H50R THERMAL MONOCULAR LRF 640 50MM 4X

The Nocpix Vista H50R is a high-performance thermal monocular combining a 640×512 thermal sensor with 12 µm pixel pitch and NETD ≤15 mK with a 50 mm f/0.9 germanium lens for sharp imaging and clear long-range detection out to approximately 2,400 yards (2,600 m). It delivers 4× native magnification (expandable up to 40× digital zoom) rendered on a stunning 2560×2560 round AMOLED display for immersive visual clarity. Integrated into the optic is a laser rangefinder with a maximum range of 1,200 yards and ±1 yard accuracy, enabling precise distance measurement during use. Additional features include 64 GB on-board storage for photo/video capture, Wi‑Fi and USB‑C connectivity, multiple detachable color palettes (e.g. White Hot, Black Hot, Red Hot, Crimson, Viridian, Violet), and electronic image stabilization for smoother imagery. Powered by dual 18650-style rechargeable battery packs (battery runtime ~5.5 hours each), the device supports convenient hot-swapping and USB-C charging. Built for durability with a rugged, IP67-rated polymer housing, it supports diverse field applications including wildlife observation, nighttime hunting, and security surveillance

FEATURES:

Thermal Sensor: 640×512 & 12μm

NETD,mK: ≤15

Frame Rate,Hz: 60

Objective Lens,mm: 50 F0.9

Field of view(H×V),°/m@100m: 8.8×7.0 /15×12

Magnification,×: 4~40

WARNING:

This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Additional Features:

Specification Detail
AUTO BRIGHTNESS N
BATTERY LIFE (HOURS) 11.0000
BRIGHT LIGHT CUT-OFF N
PACKAGING DIMENSIONS 4.95 X 6.35 X 13.00
DIOPTER ADJUSTMENT +4/-5
EXIT PUPIL 0.0000
EXPORT N
EYE RELIEF 0.0000
FIELD OF VIEW 0.0000
IR INDICATOR N
LOW BATTERY INDICATOR N
MTTF – TIME BEFORE FAILURE (HRS) 0.0000
OPERATING TEMPERATURE -25/40
POWER SUPPLY 26650
RANGE OF FOCUS 1750
HEIGHT 4.9500
WIDTH 6.3500
LENGTH 13.0000
RESOLUTION IP/MM 640
PROP65 WARNING CODE A91
