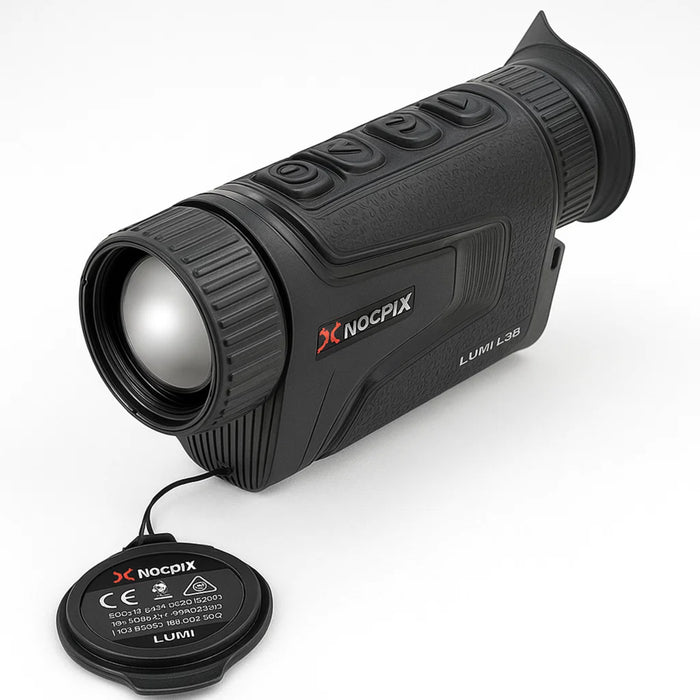

NOCPIX LUMI L35 COMPACT THERMAL MONOCULAR 384 35MM 2X
The NOCPIX LUMI L35 Compact Thermal Monocular (384 × 288, 35 mm, 2× base magnification) is a lightweight, palm-sized thermal viewer designed for hunting, scouting, and search‑and‑rescue. It features a 384 × 288 VO× sensor (12 µm, ≤ 18 mK NETD) with a 50 Hz refresh rate paired with a 35 mm F/0.9 germanium lens and 4× digital zoom, producing sharp imagery across moderate distances. Viewing occurs on a vivid 1024 × 768 AMOLED display, and the device includes onboard video, photo, and audio recording with 32 GB built-in memory and Wi‑Fi streaming via the NOCPIX mobile app. Powered by two rechargeable 18650 batteries (≈ 4.5 hours runtime per cell), and supporting external USB‑C power, it offers flexible, long-duration use in the field. Built with a rugged polymer body featuring a rubberized texture and an IP67 waterproof rating, the LUMI L35 weighs just ~12 oz and fits comfortably in your hand or pocket. Detection range for human-sized targets is rated at approximately 1,070 yd (~980 m).
FEATURES:
Thermal Sensor: 384×288 & 12μm
NETD,mK: ≤18
Frame Rate,Hz: 50
Objective Lens,mm: 35 F0.9
Field of view(H×V),°/m@100m: 7.5×5.7 /13×10
Magnification,×: 4~16
WARNING:
This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Additional Features:
Specification | Detail |
---|---|
AUTO BRIGHTNESS | N |
BATTERY LIFE (HOURS) | 11.0000 |
BRIGHT LIGHT CUT-OFF | N |
PACKAGING DIMENSIONS | 3.30 X 6.90 X 7.05 |
DIOPTER ADJUSTMENT | +4/-5 |
EXIT PUPIL | 0.0000 |
EXPORT | N |
EYE RELIEF | 0.0000 |
FIELD OF VIEW | 0.0000 |
IR INDICATOR | N |
LOW BATTERY INDICATOR | N |
MTTF - TIME BEFORE FAILURE (HRS) | 0.0000 |
OPERATING TEMPERATURE | -25/40 |
POWER SUPPLY | 26650 |
RANGE OF FOCUS | 1750 |
HEIGHT | 3.3000 |
WIDTH | 6.9000 |
LENGTH | 7.0500 |
RESOLUTION IP/MM | 640 |
PROP65 WARNING CODE | A91 |
