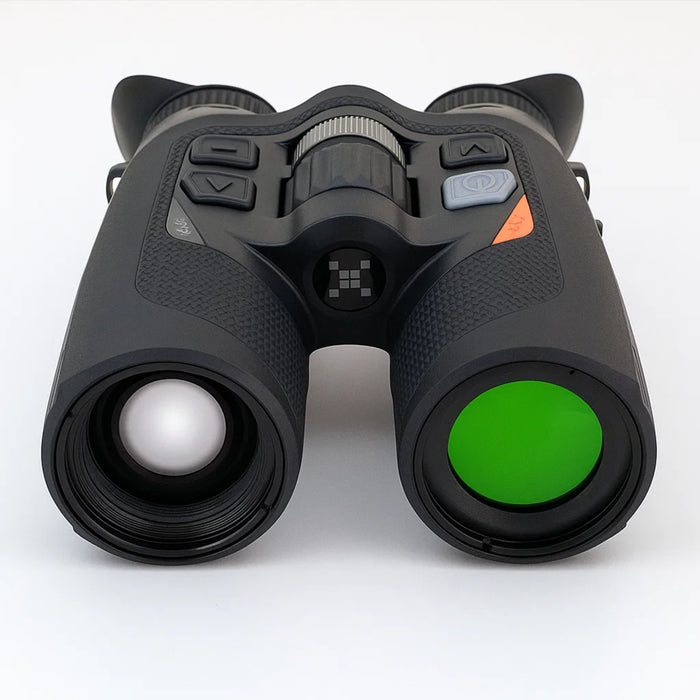

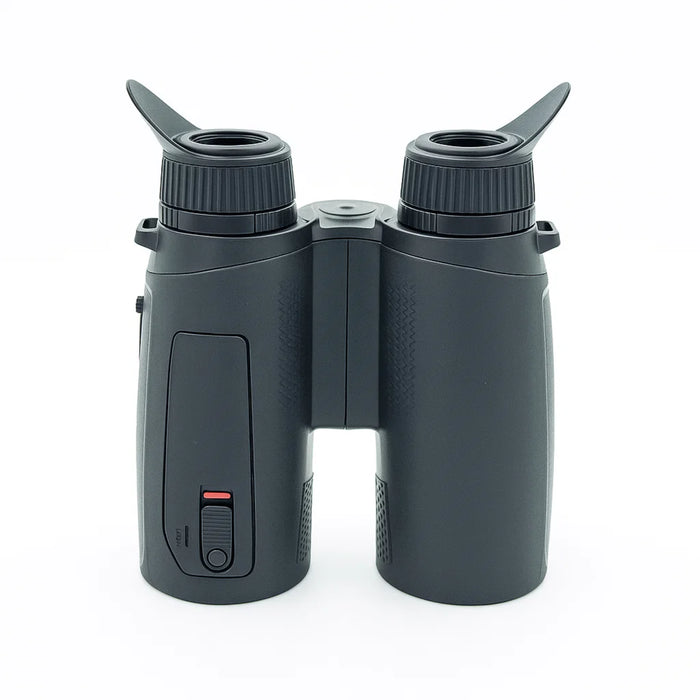

NOCPIX QUEST H35R THERMAL BINOCULARS LRF 640 35MM 3X
The NOCPIX QUEST H35R is a professional-grade thermal binocular featuring a 640 × 512 VOx sensor (12 µm pixel pitch, NETD ≤ 15 mK) with a fast 60 Hz refresh rate, paired with a bright 35 mm f/0.9 Germanium lens and 3× optical magnification (expandable to 24× digital) for sharp, long-distance imaging. Designed for comfortable, extended use, it delivers immersive views through dual 1920 × 1200 AMOLED displays with independent interpupillary and diopter adjustment. Ergonomically controlled zoom and focus dials allow intuitive one-handed operation. Standard features include onboard photo/video capture with 64 GB storage, Wi‑Fi streaming via app, and a built-in laser rangefinder accurate up to 1,000 yards. A dual-battery system (integrated plus replaceable 18650 cells) supports up to ~6 hours runtime and allows hot-swapping in the field. With IP67-rated durability and a lightweight full-rubber coated housing, the QUEST H35R is tailored for rugged outdoor environments.
FEATURES:
Dual 1920×1200 AMOLED displays.
1,000 yard integrated laser rangefinder
Focus and zoom are controlled by smooth-turning ergonomic dials.
Uses common 18650 style rechargeable batteries.
A fully-adjustable forward-opening binocular harness is included.
Independent diopter focus and interpupillary adjustment for each eye.
WARNING:
This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Additional Features:
Specification | Detail |
---|---|
OTHER FEATURES | Dual 1920×1200 AMOLED displays, uses common 18650-style rechargeable batteries, independent diopter focus and interpupillary adjustment for each eye |
OTHER FEATURES2 | 1000 m Laser Rangefinder, 64 GB storage, video and image recording, USB‑C, 24.69 oz, 640×512 resolution, 60 Hz, color modes: White Hot, Black Hot, Red Hot, Crimson, Viridian, Violet |
AUTO BRIGHTNESS | N |
BATTERY LIFE (HOURS) | 11.0000 |
BRIGHT LIGHT CUT-OFF | N |
PACKAGING DIMENSIONS | 5.25 X 8.00 X 8.70 |
DIOPTER ADJUSTMENT | +4/-5 |
EXIT PUPIL | 0.0000 |
EXPORT | N |
EYE RELIEF | 0.0000 |
FIELD OF VIEW | 0.0000 |
IR INDICATOR | N |
LOW BATTERY INDICATOR | N |
MTTF-TIME BEFORE FAILURE (HRS) | 0.0000 |
OPERATING TEMPERATURE | –25 / 40 (°C assumed) |
POWER SUPPLY | 26650 |
RANGE OF FOCUS | 1970 (likely meters) |
HEIGHT | 5.2500 |
WIDTH | 8.0000 |
LENGTH | 8.7000 |
RESOLUTION IP/MM | 640×512 |
PROP65 WARNING CODE | A91 |
