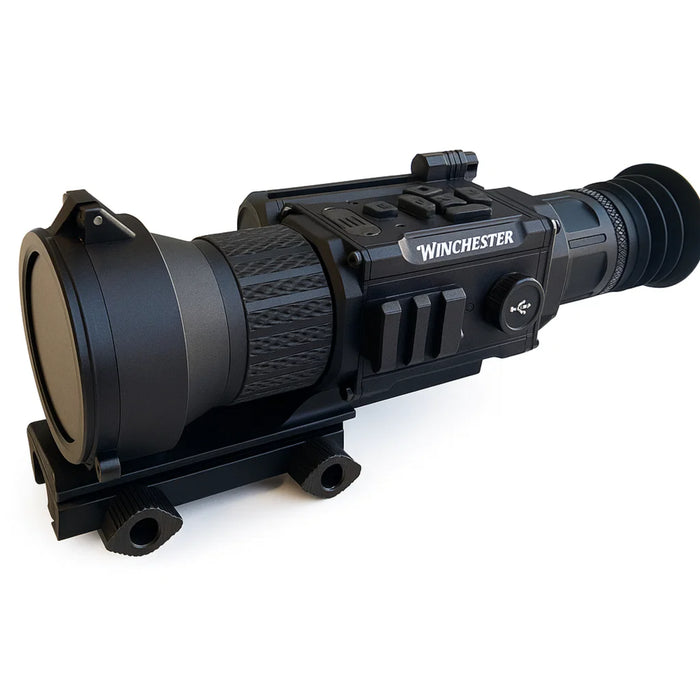

WINCHESTER SUPREME OPTICS THSX THERMAL SCOPE 640 50MM

The Winchester Supreme THSX 640 is a high-performance thermal scope equipped with a 640×512 VOx sensor (12 µm, ≤ 30 mK) and a 50 mm objective lens, offering a 2.3× optical magnification plus up to 8× digital zoom. Operating at 50 Hz with a sharp SXGA 1280×1024 OLED display, it delivers vivid, real-time imagery even in darkness, fog, or smoke. It boasts detection capability out to around 1,865 meters, includes features such as a ballistic calculator, digital compass, picture-in-picture mode, and onboard photo/video recording (64 GB eMMC), all with intuitive controls and Wi‑Fi connectivity. Housed in an IP67-rated chassis and substrate-tested to withstand up to .300 Win Mag recoil, the scope runs nearly 10 hours on dual 18650 batteries and comes with built-in Picatinny cantilever mount and essential accessories in the kit

FEATURES:

Hunting Sight

Picatinny Cantilever Extended Rail Mounting System

Objective Flip Up Lens Cover

Rubber Eye Cup

Premium Lockable Waterproof Hard Case with Purge Valve and Customizeable Foam

USB-C Charging/Data Cord

2 x 18650 Li Ion Batteries

Lens Cleaning Cloth

Instruction Manual

WARNING:

This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Additional Features:

Specification Detail
NEWITEM YES
OTHER FEATURES Picatinny lever extended rail mounting system, objective flip-up lens cover, USB-C charging/data cord, 2 × 18650 Li-ion batteries
AUTO BRIGHTNESS N
BATTERY LIFE (HOURS) 0.0000
BRIGHT LIGHT CUT-OFF N
PACKAGING DIMENSIONS 4.50 X 10.00 X 12.45
DIMENSIONS 290 × 243 × 110 mm
DIOPTER ADJUSTMENT –3 / +5
EXIT PUPIL 6.0000
EXPORT N
EYE RELIEF 45.0000
FIELD OF VIEW 8.7800
IR INDICATOR N
LOW BATTERY INDICATOR N
MAGNIFICATION 2.3×
MTTF-TIME BEFORE FAILURE (HRS) 0.0000
POWER SUPPLY 2 × 18650 Li-ion batteries
RANGE OF FOCUS 3 m
HEIGHT 4.5000
WIDTH 10.0000
LENGTH 12.4500
RESOLUTION IP/MM 640 × 512
