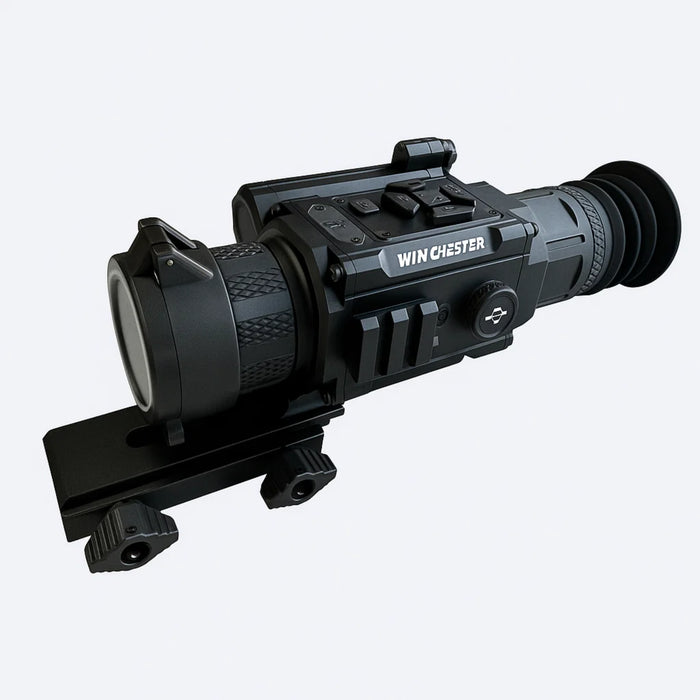

WINCHESTER SUPREME OPTICS THSX THERMAL SCOPE 384 35MM

The Winchester Supreme Optics THSX 384 is a value-driven thermal hunting sight built for performance and reliability. It features a 384×288 VOx sensor with 12 µm pixel size and a 50 Hz refresh rate, combined with a 35 mm germanium lens for a human detection range of up to 1,150 meters (~1,256 yd). Designed to perform in smoke, fog, and total darkness, it offers vivid thermal visuals via an SXGA 1280×1024 OLED display with adjustable reticles and multiple color palettes. Built with lightweight yet rugged construction (~680 g / 24 oz), it includes onboard video recording, Wi‑Fi streaming, an IP67-rated waterproof chassis, and recoil resistance up to .300 Win Mag.

The THSX 384 comes with a complete accessory kit: Picatinny cantilever rail mount, flip-up lens cover, rubber eyecup, premium lockable hard case with customizable foam, twin 18650 batteries, USB‑C charging/data cord, and cleaning cloth. With a battery runtime of up to 10 hours, extended diopter adjustment (–3 to +5 D), 45 mm eye relief, and 6 mm exit pupil, it offers versatility and user comfort in the field.

FEATURES:

Hunting Sight

Picatinny Cantilever Extended Rail Mounting System

Objective Flip Up Lens Cover

Rubber Eye Cup

Premium Lockable Waterproof Hard Case with Purge Valve and Customizeable Foam

USB-C Charging/Data Cord

2 x 18650 Li Ion Batteries

Lens Cleaning Cloth

Instruction Manual

WARNING:

This product can expose you to chemicals including butadiene, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Additional Features:

Specification Detail
NEWITEM YES
OTHER FEATURES PIC CANTILEVER EXTENDED RAIL MOUNTING SYSTEM, USB-C CHARGING CORD, 2 18650 BATTERIES
AUTO BRIGHTNESS N
BATTERY LIFE (HOURS) 0.0000
BRIGHT LIGHT CUT-OFF N
PACKAGING DIMENSIONS 4.55 X 10.00 X 12.45
DIMENSIONS 290X243X110MM
DIOPTER ADJUSTMENT -3+5
EXIT PUPIL 6.0000
EXPORT N
EYE RELIEF 45.0000
FIELD OF VIEW 7.5000
IR INDICATOR N
LOW BATTERY INDICATOR N
MAGNIFICATION 2.6
MTTF - TIME BEFORE FAILURE (HRS) 0.0000
POWER SUPPLY 2 18650 LI ION BATTERIES
RANGE OF FOCUS 3M
HEIGHT 4.5500
WIDTH 10.0000
LENGTH 12.4500
RESOLUTION IP/MM 384X288
